Product Summary

The TPME477K006R0030 is a tantalum ultra low ESR capacitor. The TPME477K006R0030 adopts multi-anode construction. The CV range is 10-2200μF / 2.5-50V, and four case sizes are available. Except from the information stated above, this product also have characteristics as follow, such as Mirror multi-anode construction used with D case capacitors reduces ESL to half, as well as super low ESR.

Parametrics

TPME477K006R0030 absolute maximum ratings:(1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 10 μF to 2200 μF; (3)Capacitance Tolerance: ±10%, ±20%; (4)Rated Voltage (VR) +85℃: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50; (5)Category Voltage (VC) +125℃: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33; (6)Surge Voltage (VS) +85℃: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65; (7)Surge Voltage (VS) +125℃: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40; (8)Temperature Range: -55℃ to +125℃; (9)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level Meets requirements of AEC-Q200.

Features

TPME477K006R0030 features: (1)Multi-anode construction; (2)Super low ESR; (3)CV range: 10-2200μF / 2.5-50V; (4)4 case sizes available; (5)Mirror multi-anode construction used with D case capacitors reduces ESL to half.

Diagrams

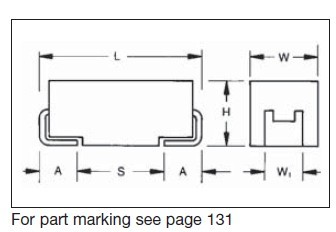

TPME477K006R0030 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPME477K006R0030
TPME477K006R0030
AVX
Tantalum Capacitors - Solid SMD 470UF 6V 10%
Data Sheet
0-1: $3.96
1-10: $3.72
10-50: $3.53
50-100: $3.30
100-400: $2.48
