MC13213

2.4GHZ, 60K, 71LGA, ZigBee platform, Transceiver, -0.3 to 3.6 V, 120 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~3.00

PartNumber:: MC13213

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Charlie Cha's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-12

From Other Seller

Part Number:MC13213
US $2.50 - 3.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

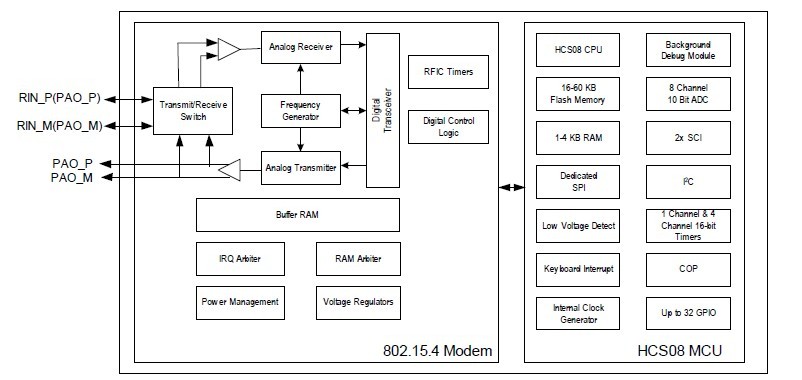

The MC13213 is a ZigBee platform which incorporates a low power 2.4GHz radio frequency transceiver and an 8-bit microcontroller into a single 9x9x1 mm 71-pin LGA package. The MC13213 solution can be used for wireless applications from simple proprietary point-to-point connectivity to a complete ZigBee mesh network. The combination of the radio and a microcontroller in a small footprint package allows for a cost-effective solution. The MC13213 contains an RF transceiver which is an 802.15.4 Standard compliant radio that operates in the 2.4 GHz ISM frequency band. The transceiver includes a low noise amplifier, 1mW nominal output power, PA with internal voltage controlled oscillator (VCO), integrated transmit/receive switch, on-board power supply regulation, and full spread-spectrum encoding and decoding.

Parametrics

MC13213 absolute maximum ratings: (1)Maximum Junction Temperature TJ: 125 ℃; (2)Storage Temperature Range Tstg: -55 to 125 ℃; (3)Power Supply Voltage VBATT, VDDINT: -0.3 to 3.6 Vdc; (4)Digital Input Voltage Vin: -0.3 to (VDDINT + 0.3); (5)RF Input Power Pmax: 10 dBm; (6)Maximum Current into VDD IDD: 120 mA; (7)Instantaneous Maximum Current (Single Pin Limit)1, 2, 3 ID: ± 25 mA.

Features

MC13213 features: (1)802.15.4 Standard compliant on-chip transceiver/modem; (2)Multiple power saving modes; (3)2V to 3.4V operating voltage with on-chip voltage regulators; (4)-40℃ to +85℃ temperature range; (5)Low external component count; (6)Supports single 16 MHz crystal clock source operation or dual crystal operation; (7)Support for SMAC, IEEE 802.15.4 Standard-Compliant MAC, SynkroRF, BeeStack, BeeStack Consumer (ZigBee RF4CE) software solutions; (8)9mm x 9mm x 1mm 71-pin LGA.
