Product Summary

The MRF8S9200NR3 is a RF Power field effect transistor designed for CDMA base station applications with frequencies from 920 to 960 MHz. MRF8S9200NR3 can be used in Class AB and Class C for all typical cellular base station modulation formats.

Parametrics

MRF8S9200NR3 absolute maximum ratings: (1)Drain--Source Voltage VDSS: -0.5 to +70 Vdc; (2)Gate-Source Voltage VGS: -6.0 to +10 Vdc; (3)Operating Voltage VDD: 32 to +0 Vdc; (4)Storage Temperature Range Tstg: -65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature (1,2) TJ: 225 ℃.

Features

MRF8S9200NR3 features: (1)Integrated ESD Protection; (2)Designed for Digital Predistortion Error Correction Systems; (3)100% PAR Tested for Guaranteed Output Power Capability; (4)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source S-Parameters; (5)Optimized for Doherty Applications; (6)RoHS Compliant; (7)In Tape and ReelR1 Suffix = 500 Units per 32 mm, 13 inch Reel.

Diagrams

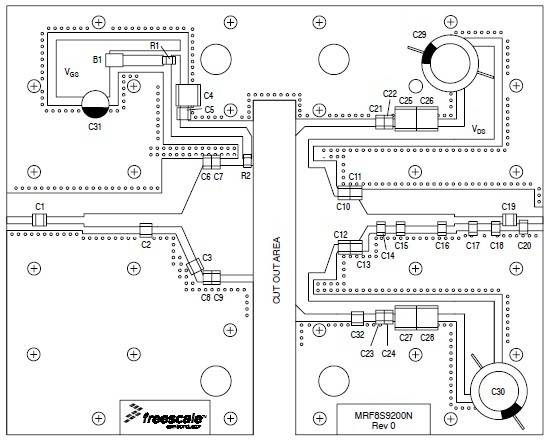

MRF8S9200NR3 Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF8S9200NR3
MRF8S9200NR3
Freescale Semiconductor
Transistors RF MOSFET Power HV8 900MHz 58W OM780-2
Data Sheet
0-1: $72.86
1-10: $68.74
10-25: $64.85
25-100: $40.53
