Product Summary
The PE4259 UltraCMOS RF switch is designed to cover a broad range of applications from 10 MHz through 3000 MHz. The PE4259 integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal +3-volt power supply voltage, a typical input 1 dB compression point of +33.5 dBm can be achieved. The PE4259 is manufactured on UltraCMOS process, a patented variation of silicon-on-insulator(SOI) technology on a sapphire substrate, offering the performance of GaAs with the economy and integration of conventional CMOS.
Parametrics
PE4259 absolute maximum ratings: (1)VDD Power supply voltage: -0.3 to 4.0 V; (2)VI Voltage on any DC input: -0.3 to VDD+0.3V; (3)TST Storage temperature range: -65 to 150 ℃; (4)TOP Operating temperature range: -40 to 85 ℃; (5)PIN Input power (50 Ω): +34 dBm; (6)VESD ESD Voltage (HBM, ML_STD 883 Method 3015.7): 2000 V; (7)ESD Voltage (MM, JEDEC, JESD22-A114-B): 100 V.
Features
PE4259 features: (1)Single-pin or complementary CMOS logic control inputs; (2)Low insertion loss: 0.35 dB @ 1000 MHz; 0.5 dB @ 2000 MHz; (3)Isolation of 30 dB @ 1000 MHz; (4)High ESD tolerance of 2 kV HBM; (5)Typical input 1 dB compression point of +33.5 dBm; (6)1.8V minimum power supply voltage; (7)Ultra-small SC-70 package.

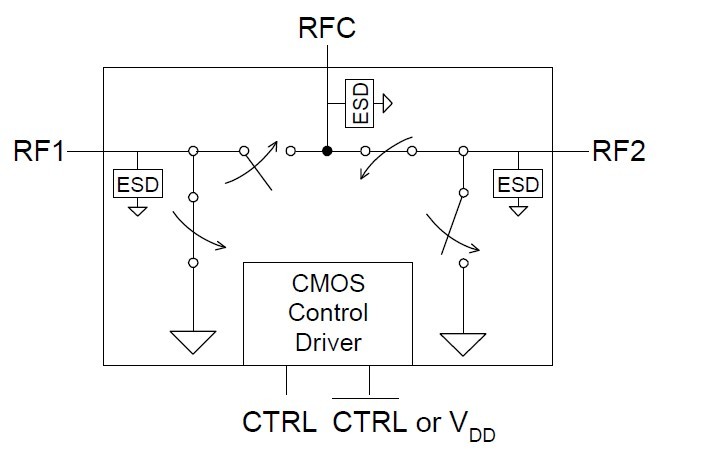

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PE4259SCBC-Z |
|

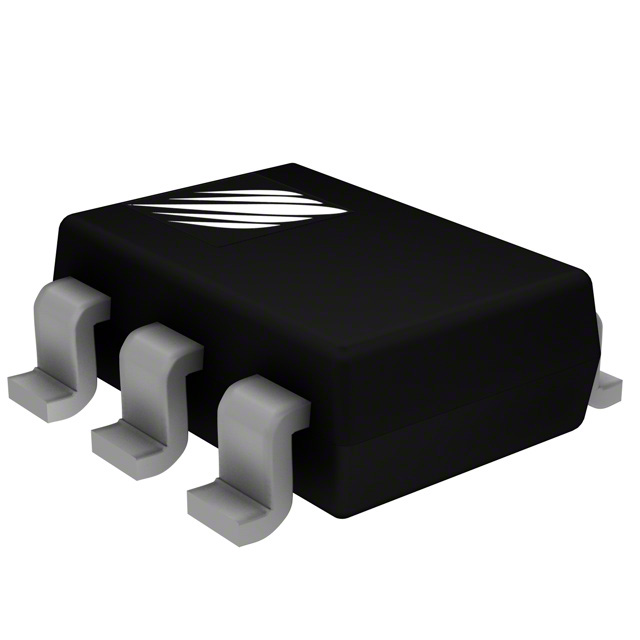

IC RF SWITCH SPDT 50 OHM SC70-6 |
Data Sheet |
|
|
||||||||||||||||
 |
PE4259 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
