Product Summary

The MC9S08LL16CLH is a microcontroller.

Parametrics

MC9S08LL16CLH absolute maximum ratings: (1)Supply voltage VDD: -0.3 to 3.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: -0.3 to VDD + 0.3 V; (4)Instantaneous maximum current; (5)Single pin limit (applies to all port pins) ID: ±25 mA; (6)Storage temperature range Tstg: -55 to 150℃.

Features

MC9S08LL16CLH features: (1)8-Bit HCS08 Central Processor Unit (CPU); (2)Dual Array FLASH read/program/erase over full operating voltage and temperature; (3)Random-access memory (RAM); (4)Security circuitry to prevent unauthorized access to RAM and FLASH contents; (5)Two low power stop modes; (6)Reduced power wait mode; (7)Low power run and wait modes allow peripherals to run while voltage regulator is in standby; (8)Peripheral clock gating register can disable clocks to unused; (9)modules, thereby reducing currents.; (10)Very low power external oscillator that can be used in stop2 or stop3 modes to provide accurate clock source to real time; (11)counter; (12)6 usec typical wake up time from stop3 mode; (13)Single-wire background debug interface; (14)Breakpoint capability to allow single breakpoint setting during; (15)in-circuit debugging.

Diagrams

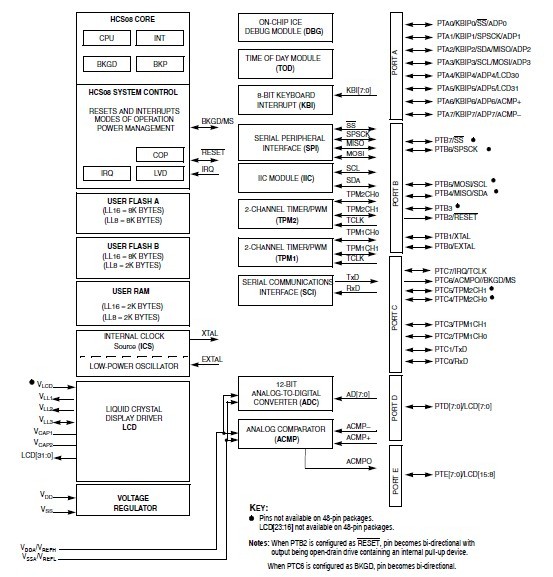

MC9S08LL16CLH block daigram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08LL16CLH
MC9S08LL16CLH
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8BIT 16KFLASH 2KRAM
Data Sheet
0-1: $1.57
1-25: $1.42
25-50: $1.22
50-100: $0.99
