Product Summary
The NBB-310-T1 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs. This 50Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for small-signal applications. Designed with an external bias resistor, the NBB-310-T1 provides flexibility and stability. The NBB-310-T1 is packaged in a low-cost, surface-mount ceramic package, providing ease of assembly for high-volume tape-and-reel requirements. The NBB-310-T1 is available in either packaged or chip form, where its gold metallization is ideal for hybrid circuit designs. The applications of NBB-310-T1 are: (1)Narrow and Broadband Commercial and Military Radio Designs; (2)Linear and Saturated Amplifiers; (3)Gain Stage or Driver Amplifiers for MWRadio/Optical Designs.
Parametrics
NBB-310-T1 absolute maximum ratings: (1)RF Input Power: +20 dBm; (2)Power Dissipation: 350 mW; (3)Device Current: 70 mA; (4)Channel Temperature: 200 ℃; (5)Operating Temperature: -45 to +85 ℃; (6)Storage Temperature: -65 to +150 ℃.
Features
NBB-310-T1 features: (1)Reliable, Low-Cost HBT Design; (2)13dB Gain; (3)High P1dB of +15.2dBm at 6GHz; (4)Single Power Supply Operation; (5)50Ω I/O Matched for High Freq Use.

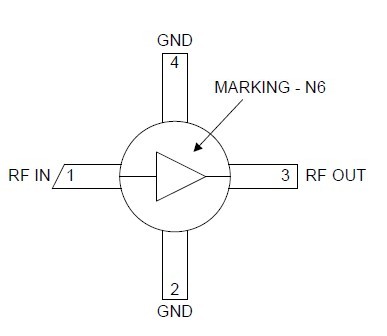

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NBB-310-T1 |
|
IC AMP MMIC GAAS 12GHZ 4-MICROX |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
NBB-100 |
Cooper Bussmann |
Fuses NBB-100 |
Data Sheet |
|
|
||||||||||||||||
 |
NBB-10220 |
Bud Industries |
Enclosures, Boxes, & Cases 5.11 x 3.94 x 2.75 Solid Door |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
NBB-10221 |
Bud Industries |
Enclosures, Boxes, & Cases 5.9 x 3.94 x 2.75 Solid Door |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
NBB-10222 |
Bud Industries |
Enclosures, Boxes, & Cases 7.87 x 3.94 x 2.75 Solid Door |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
NBB-10223 |
Bud Industries |
Enclosures, Boxes, & Cases 10.63 x 3.94 x 2.75 Solid Door |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
NBB-10230 |
Bud Industries |

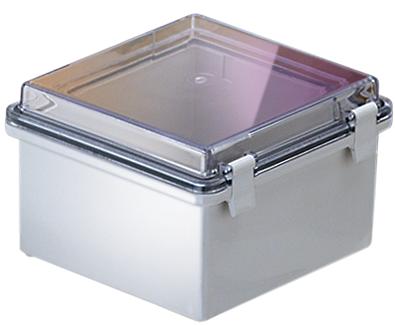

Enclosures, Boxes, & Cases 5.11 x 3.94 x 2.75 Clear Door |
