Product Summary

The MC9S08SH4CTJR is an 8-bit, low-cost, high-performance microcontroller. It uses the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.

Parametrics

MC9S08SH4CTJR absolute maximum ratings: (1)Supply voltage VDD: –0.3 to +5.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins)ID: ±25 mA; (5)Storage temperature range Tstg: –55 to 150 ℃.

Features

MC9S08SH4CTJR features: (1)8-Bit HCS08 Central Processor Unit (CPU): 40-MHz HCS08 CPU (central processor unit); HC08 instruction set with added BGND instruction; Support for up to 32 interrupt/reset sources; (2)On-Chip Memory: FLASH read/program/erase over full operating voltage and temperature; Random-access memory (RAM); (3)Power-Saving Modes: Two very low power stop modes; Reduced power wait mode; Very low power real time interrupt for use in run, wait, and stop.

Diagrams

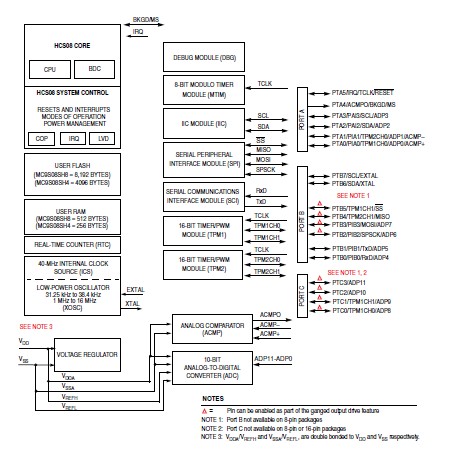

MC9S08SH4CTJR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08SH4CTJR
MC9S08SH4CTJR
Freescale Semiconductor
8-bit Microcontrollers (MCU) 9S08 UC W/ 8K 0.25UM SGF
Data Sheet
0-1730: $0.70
