Product Summary

The RF3315TR7 is a high-efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier packaged in a low-cost surface-mount package. This amplifier is ideal for use in applications requiring high-linearity and low noise figure over the 300MHz to 3GHz frequency range. The RF3315TR7 operates from a single 5V power supply.

Parametrics

RF3315TR7 absolute maximum ratings: (1)RF Input Power: +20 dBm; (2)Device Voltage: -0.5 to +6.0 V; (3)Device Current: 250 mA; (4)Operating Temperature: -40 to +85 ℃; (5)Storage Temperature: -40 to +150 ℃; (6)Max. TJ (MTTF>100years): 165 ℃.

Features

RF3315TR7 features: (1)300MHz to 3GHz; (2)+40dBm Output IP3; (3)12.5dB Gain at 2.0GHz; (4)+23dBm P1dB; (5)3.0dB Typical Noise Figure at 2.0GHz; (6)Single 5V Power Supply.

Diagrams

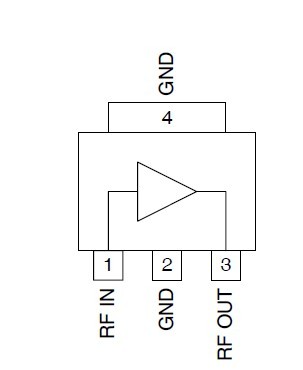

RF3315TR7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RF3315TR7
RF3315TR7

IC AMP HBT GAAS BROADBAND SOT-89
Data Sheet
0-1: $4.89
1-25: $3.89
25-100: $3.39
100-250: $3.01
250-500: $2.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RF3315
RF3315
Other

Data Sheet
Negotiable
RF3315PCK-411
RF3315PCK-411

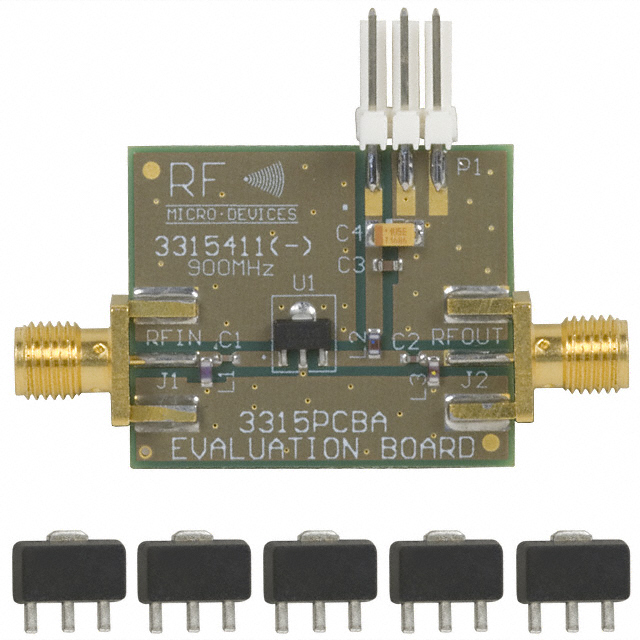

KIT EVAL FOR RF3315 900MHZ
