Product Summary

The MC9S12XEP100CAG is a micro controller which is a further development of the S12XD-Family including new features for enhanced system integrity and greater functionality. These new features include a Memory Protection Unit (MPU) and Error Correction Code (ECC) on the Flash memory together with enhanced EEPROM functionality (EEE), an enhanced XGATE, an Internally filtered, frequency modulated Phase Locked Loop (IPLL) and an enhanced ATD.

Parametrics

MC9S12XEP100CAG absolute maximum ratings: (1)I/O, regulator and analog supply voltage: –0.3 to 6.0 V; (2)Digital logic supply voltage: -0.3 to 2.16V; (3)PLL supply voltage: –0.3 to 2.16 V; (4)NVM supply voltage: –0.3 to 3.6 V; (5)Voltage difference VDDX to VDDA: –6.0 to 0.3 V; (6)Voltage difference VSSX to VSSA: –0.3 to 0.3 V; (7)Digital I/O input voltage: –0.3 to 6.0 V; (8)Analog reference: –0.3 to 6.0 V; (9)Storage temperature range: –65 to 155℃.

Features

MC9S12XEP100CAG features: (1)16-Bit CPU12X; (2)Enhanced indexed addressing; (3)Access to large data segments independent of PPAGE; (4)Eight levels of nested interrupts; (5)Flexible assignment of interrupt sources to each interrupt level.; (6)External non-maskable high priority interrupt (XIRQ); (7)Internal non-maskable high priority Memory Protection Unit interrupt; (8)Up to 24 pins on ports J, H and P configurable as rising or falling edge sensitive interrupts; (9)EBI (external bus interface)(available in 208-Pin and 144-Pin packages only); (10)BDM (background debug mode); (11)MPU (memory protection unit).

Diagrams

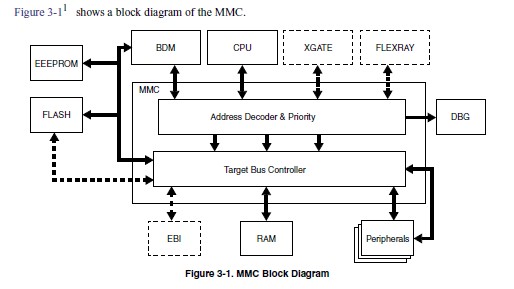

MC9S12XEP100CAG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S12XEP100CAG
MC9S12XEP100CAG
Freescale Semiconductor
16-bit Microcontrollers (MCU) 1M FLASH S12XEP SAILFI
Data Sheet
0-1: $11.50
1-25: $10.39
25-50: $8.90
50-100: $7.21
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08AC128CFGE
MC9S08AC128CFGE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.56
1-25: $2.32
25-50: $1.99
50-100: $1.61
MC9S08AC128CFUE
MC9S08AC128CFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.75
1-25: $2.48
25-50: $2.13
50-100: $1.73
MC9S08AC128CLKE
MC9S08AC128CLKE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 Bit 128K FLASH 8K RAM
Data Sheet
0-1: $2.77
1-25: $2.51
25-50: $2.14
50-100: $1.74
MC9S08AC128MLKE
MC9S08AC128MLKE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH, 8K RAM
Data Sheet
0-1: $3.25
1-25: $3.06
25-100: $1.91
MC9S08AC128MFGE
MC9S08AC128MFGE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH, 8K RAM
Data Sheet
0-1: $3.00
1-25: $2.83
25-100: $1.77
MC9S08AC128MFUE
MC9S08AC128MFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 128K FLASH 8K RAM
Data Sheet
0-1: $3.20
1-25: $3.02
25-100: $1.89
