MC56F8013VFAE

Product Summary

The MC56F8013VFAE is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, the MC56F8013VFAE is well-suited for many applications. The MC56F8013VFAE includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, power management, and medical monitoring applications.

Parametrics

MC56F8013VFAE absolute maximum ratings: (1)Supply Voltage Range VDD: -0.3 to 4.0 V; (2)Analog Supply Voltage Range VDDA: - 0.3 to 4.0 V; (3)ADC High Voltage Reference VREFH: - 0.3 to 4.0 V; (4)Voltage difference VDD to VDDA ΔVDD: - 0.3 to 0.3 V; (5)Voltage difference VSS to VSSA ΔVSS: - 0.3 to 0.3 V; (6)Input Voltage Range (Digital inputs) VIN Pin Groups: - 0.3 to 6.0 V; (7)Input Voltage Range (ADC inputs) VIC: -20 mA; (8)Output clamp current, per pin (VO < 0)2 VOC: -20 mA; (9)Output Voltage Range (Normal Push-Pull mode) VOUT Pin Group: -0.3 to 4.0 V; (10)Output Voltage Range (Open Drain mode) VOUTOD: -0.3 to 6.0 V; (11)Ambient Temperature TA: -40 to 105 ℃; (12)Storage Temperature TSTG: -55 to 150 ℃.

Features

MC56F8013VFAE features: (1)Up to 32 MIPS at 32MHz core frequency; (2)DSP and MCU functionality in a unified; (3)C-efficient architecture; (4)56F8013 device offers 16KB Program Flash; (5)56F8011 device offers 12KB Program Flash; (6)56F8013 device offers 4KB Unified Data/Program; (7)RAM; (8)56F8011 device offers 2KB Unified Data/Program; (9)RAM; (10)One 6-channel PWM module; (11)Two 3-channel 12-bit ADCs; (12)One Serial Peripheral Interface (SPI); (13)One 16-bit Quad Timer; (14)One Inter-Integrated Circuit (I2C) Port; (15)Computer Operating Properly (COP)/Watchdog; (16)On-Chip Relaxation Oscillator.

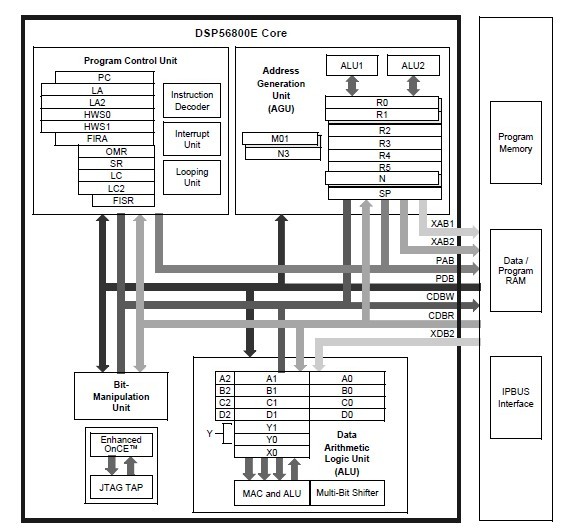

Diagrams
