Product Summary

The TPSE226K035R0300 is a surface mount capacitor which has inherently low ESR (equivalent series resistance) and is capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power. The TPSE226K035R0300 has been designed, manufactured, and preconditioned for optimum performance in typical power supply applications. By combining the latest improvements in tantalum powder technology, improved manufacturing processes, and application specific preconditioning tests, AVX is able to provide a technologically superior alternative to the standard range.

Parametrics

TPSE226K035R0300 absolute maximum ratings: (1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 22 μF; (3)Rated DC Voltage: 35VDC; (4)Capacitance Tolerance: ±10%; (5)Rated Voltage (VR) ≤ +85℃: 35; (6)Category Voltage (VC) ≤ +125℃: 23; (7)Surge Voltage (VS) ≤ +85℃: 46; (8)Surge Voltage (VS) ≤ +125℃: 28; (9)Temperature Range: -55℃ to +125℃; (10)Environmental Classification: 55/125/56 (IEC 68-2).

Features

TPSE226K035R0300 features: (1)surface mount product; (2)low ESR (equivalent series resistance); (3)higher ripple current handling; (4)lower ripple voltages.

Diagrams

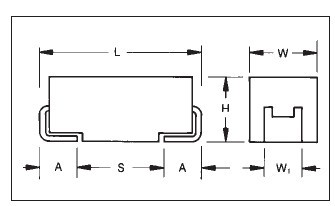

TPSE226K035R0300 dimension
