Product Summary
The MC9S08SH8CTG is an 8-bit, low-cost, high-performance microcontroller. It uses the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.
Parametrics
MC9S08SH8CTG absolute maximum ratings: (1)Supply voltage VDD: –0.3 to +5.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins)ID: ±25 mA; (5)Storage temperature range Tstg: –55 to 150 ℃.
Features
MC9S08SH8CTG features: (1)8-Bit HCS08 Central Processor Unit (CPU): 40-MHz HCS08 CPU (central processor unit); HC08 instruction set with added BGND instruction; Support for up to 32 interrupt/reset sources; (2)On-Chip Memory: FLASH read/program/erase over full operating voltage and temperature; Random-access memory (RAM); (3)Power-Saving Modes: Two very low power stop modes; Reduced power wait mode; Very low power real time interrupt for use in run, wait, and stop.

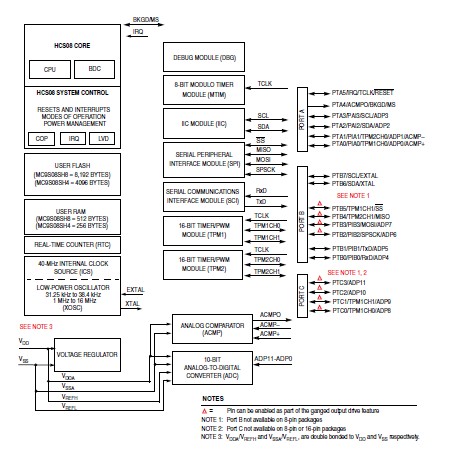

Diagrams
