Product Summary

The MC9S08FL16CLC is an 8-Bit S08 Central Processor Unit (CPU).

Parametrics

MC9S08FL16CLC absolute maximum ratings: (1)Supply voltage VDD: –0.3 to 5.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum: current; (5)Single pin limit (applies to all port pins): ±25 mA; (6)Storage temperature range: –55 to 150 ℃.

Features

MC9S08FL16CLC features: (1)8-Bit S08 Central Processor Unit (CPU); (2)On-Chip Memory; (3)Power-Saving Modes; (4)Clock Source Options; (5)Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock; (6)Low-voltage detectionwith reset or interrupt; selectable trip points; (7)Illegal opcode detection with reset; (8)Illegal address detection with reset; (9)Flash block protection; (10)Input/Output:30 GPIOs including 1 output-only pin and 1 input-only pin; (11)Package Options: 32-pin SDIP; 32-pin LQFP.

Diagrams

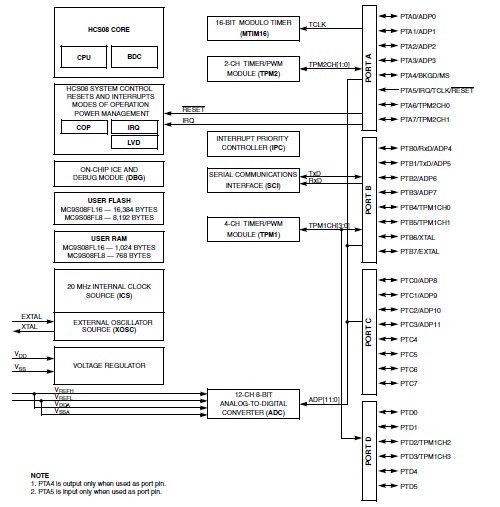

MC9S08FL16CLC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08FL16CLC
MC9S08FL16CLC
Freescale Semiconductor
8-bit Microcontrollers (MCU) S08 16K FLASH FL16
Data Sheet
0-870: $0.62
