Product Summary

The SGA4586Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal performance. The applications of SGA4586Z are PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.

Parametrics

SGA4586Z absolute maximum ratings: (1)Max Device Current (ID): 90 mA; (2)Max Device Voltage (VD): 5 V; (3)Max RF Input Power, ZL=50Ω :+18 dBm; (4)Max Junction Temp (TJ): +150℃; (5)Operating Temp Range (TL): -40 to +85℃; (6)Max Storage Temp: +150℃.

Features

SGA4586Z features: (1)High Gain: 17.9dB at 1950MHz; (2)Cascadable 50Ω; (3)Operates from Single Supply; (4)Low Thermal Resistance Package.

Diagrams

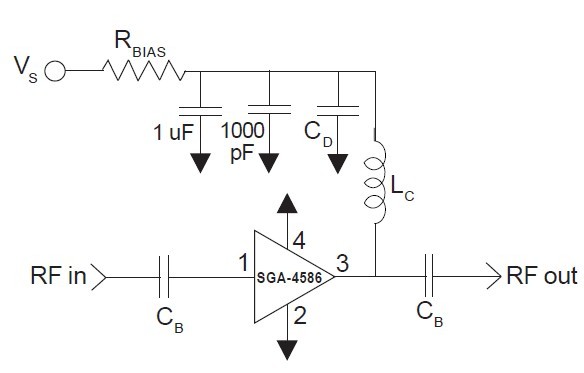

SGA4586Z Application Schematic
