Product Summary
The MMG3014NT1 is a General Purpose Amplifier that is internally input matched and internally output prematched. It is designed for a broad range of Class A, small-signal, high linearity, general purpose applications. The MMG3014NT1 is suitable for applications with frequencies from 40 to 4000 MHz such as cellular, PCS, BWA, WLL, PHS, CATV, VHF, UHF, UMTS and general small-signal RF.
Parametrics
MMG3014NT1 absolute maximum ratings: (1)Supply Voltage VCC: 6 V; (2)Supply Current ICC: 300 mA; (3)RF Input Power Pin: 25 dBm; (4)Storage Temperature Range Tstg: -65 to +150 ℃; (5)Junction Temperature (2) TJ: 150 ℃.
Features
MMG3014NT1 features: (1)Frequency: 40-4000 MHz; (2)P1dB: 25 dBm @ 900 MHz; (3)Small-Signal Gain: 19.5 dB @ 900 MHz; (4)Third Order Output Intercept Point: 40.5 dBm @ 900 MHz; (5)Single 5 Volt Supply; (6)Active Bias; (7)Cost-effective SOT-89 Surface Mount Package; (8)RoHS Compliant; (9)In Tape and Reel. T1 Suffix = 1,000 Units, 12 mm Tape Width, 7 inch Reel.

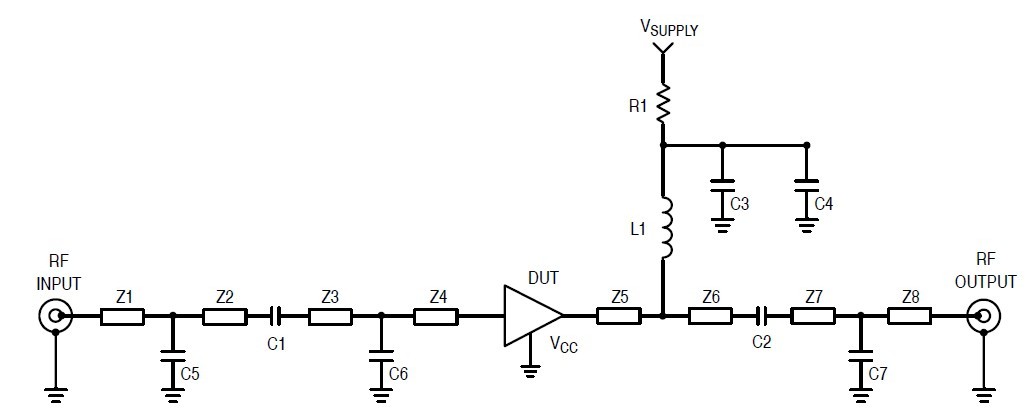

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMG3014NT1 |
Freescale Semiconductor |
RF Amplifier 24DBM RF GenPurp Amp InGaP HBT |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
MMG3001NT1 |
Freescale Semiconductor |
RF Amplifier 18DBM 20DB GEN PURP AMP |
Data Sheet |
|
|
||||||||||||
|
MMG3002NT1 |
Freescale Semiconductor |
RF Amplifier 21DBM 20 DB GEN PURP AMP |
Data Sheet |
|
|
||||||||||||
|
MMG3003NT1 |
Freescale Semiconductor |
RF Amplifier 20DB 24DBM GEN PURP AMP |
Data Sheet |
|
|
||||||||||||
|
MMG3004NT1 |
Freescale Semiconductor |
RF Amplifier 27DBM 16.5DB GPA 5X5PQFN |
Data Sheet |
|
|
||||||||||||
|
MMG3005NT1 |
Freescale Semiconductor |
RF Amplifier 30DBM 15DB GPA 5X5 PQFN |
Data Sheet |
|
|
||||||||||||
|
MMG3006NT1 |
Freescale Semiconductor |
RF Amplifier 33DBM GPA QFN4X4-16 |
Data Sheet |
|
|
||||||||||||
