Product Summary

The MW7IC2040NR1 wideband integrated power amplifier is designed with on-chip matching that makes MW7IC2040NR1 usable from 1805 to 1990 MHz. This multi -stage structure is rated for 24 to 32 Volt operation and covers all typical cellular base station modulation formats.

Parametrics

MW7IC2040NR1 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5 to +65 Vdc; (2)Gate-Source Voltage VGS: -0.5 to +10 Vdc; (3)Operating Voltage VDD: 32 to +0 Vdc; (4)Storage Temperature Range Tstg: -65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature (1,2) TJ: 225 ℃; (7)Input Power Pin: 25 dBm.

Features

MW7IC2040NR1 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source S-Parameters; (2)On-Chip Matching (50 Ohm Input, DC Blocked, >3 Ohm Output); (3)Integrated Quiescent Current Temperature Compensation with Enable/Disable Function; (4)Integrated ESD Protection; (5)225℃ Capable Plastic Package; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

Diagrams

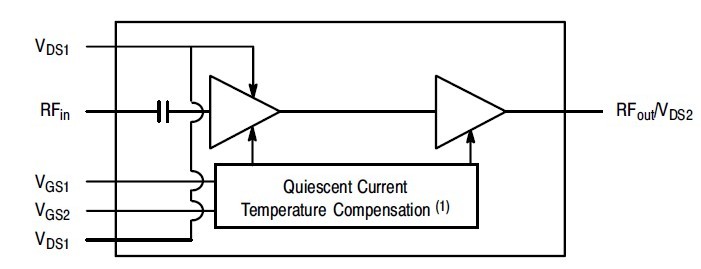

MW7IC2040NR1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC2040NR1
MW7IC2040NR1
Freescale Semiconductor
RF Amplifier HV7 1990MHz WB16 Plastic
Data Sheet
0-271: $27.33
271-500: $19.71
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC008NT1
MW7IC008NT1
Freescale Semiconductor
RF Amplifier HV7 900MHZ 8W PQFN8X8
Data Sheet
0-445: $9.80
445-500: $8.72
500-1000: $5.81
MW7IC18100GNR1
MW7IC18100GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
Negotiable
MW7IC18100NBR1
MW7IC18100NBR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC18100NR1
MW7IC18100NR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC2020NT1
MW7IC2020NT1
Freescale Semiconductor
RF Amplifier HV7IC 2GHz 20W PQFN8X8
Data Sheet
0-446: $19.00
446-500: $16.91
500-1000: $11.27
MW7IC2040GNR1
MW7IC2040GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHz WB16 Gull Wing
Data Sheet
0-271: $27.33
271-500: $19.71
