Product Summary
The MPC8548VTAQGB is an Integrated Processor Hardware.
Parametrics
MPC8548VTAQGB absolute maximum ratings: (1)Core supply voltage VDD: –0.3 to 1.21 V; (2)PLL supply voltage AVDD: –0.3 to 1.21 V; (3)Core power supply for SerDes transceivers: SVDD –0.3 to 1.21 V; (4)Pad power supply for SerDes transceivers: XVDD –0.3 to 1.21 V; (5)DDR and DDR2 DRAM I/O voltage: GVDD –0.3 to 2.75V; (6)Three-speed Ethernet I/O voltage LVDD (for eTSEC1 and eTSEC2): –0.3 to 3.63 V; (7)TVDD (for eTSEC3 and eTSEC4: –0.3 to 3.63V; (8)PCI/PCI-X, DUART, system control and power management, I2C, Ethernet MII management, and JTAG I/O voltage: OVDD –0.3 to 3.63 V; (9)Local bus I/O voltage: BVDD –0.3 to 3.63V; (10)Input voltage DDR/DDR2 DRAM signals: MVIN –0.3 to (GVDD + 0.3)V; (11)DDR/DDR2 DRAM reference MVREF: –0.3 to (GVDD/2 + 0.3)V.
Features
MPC8548VTAQGB features: (1)32-Kbyte L1 instruction cache and 32-Kbyte L1 data cache with parity protection. Caches can be locked entirely or on a per-line basis, with separate locking for instructions and data; (2)Signal-processing engine (SPE) APU (auxiliary processing unit). Provides an extensive instruction set for vector (64-bit) integer and fractional operations. These instructions use both the upper and lower words of the 64-bit GPRs as they are defined by the SPE APU; (3)Double-precision floating-point APU. Provides an instruction set for double-precision (64-bit) floating-point instructions that use the 64-bit GPRs; (4)36-bit real addressing; (5)Embedded vector and scalar single-precision floating-point APUs. Provide an instruction set for single-precision (32-bit) floating-point instructions; (6)Memory management unit (MMU). Especially designed for embedded applications. Supports 4-Kbyte to 4-Gbyte page sizes; (7)Enhanced hardware and software debug support; (8)Performance monitor facility that is similar to, but separate from, the MPC8548E performance monitor.

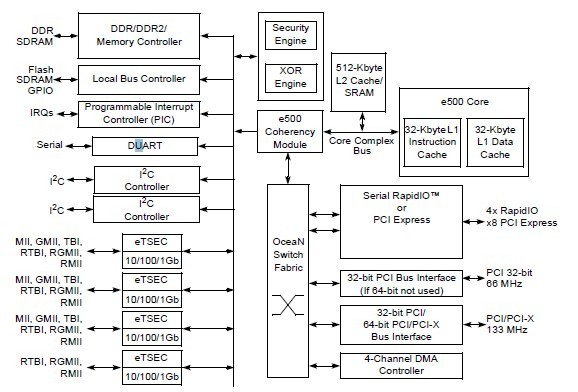

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC8548VTAQGB |
Freescale Semiconductor |
Microprocessors (MPU) FG PQ38 8548 PB Free |
Data Sheet |
|
|
||||||
