Product Summary
The SKY13350-385LF is an IC FET SPDT switch in a low cost miniature SC-70 6 lead plastic package. The SKY13350-385LF features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.
Parametrics
SKY13350-385LF absolute maximum ratings: (1)input power > 500 MHz, 5V: 32dBm; (2)Operating temperature: -40 ℃ to +85 ℃; (3)Storage temperature: -65 ℃ to +150 ℃.
Features
SKY13350-385LF features: (1)Positive voltage control (0 and 1.8 V to 0 and 5.0 V); (2)Broadband frequency range: 0.8-6.0 GHz; (3)Very low insertion loss, 0.35 dB typical @ 3 GHz; (4)High isolation, 25 dB typical @ 3 GHz; (5)Excellent linearity performance, P1dB = +33 dBm; (6)Ultra-miniature, MLPD (6-pin, 1 x 1 mm) package (MSL1, 260 ℃ per JEDEC J-STD-020).

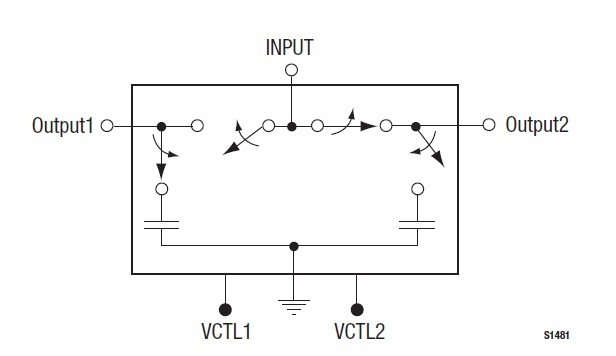

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKY13350-385LF |
Skyworks Solutions, Inc. |
RF Switch ICs .01-5.0GHz SPDT IL .35dB @3.0GHz |
Data Sheet |
|
|
||||||||||||
 |
SKY13350-385LF-EVB |
|
EVAL BOARD FOR SKY13350 |
Data Sheet |
|
|
||||||||||||
