Product Summary

The TPSV686K025R0095 is a robust Mn02 solid electrolyte capacitor.

Parametrics

TPSV686K025R0095 absolute maximum ratings: (1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 0.15 μF to 1500 μF; (3)Capacitance Tolerance: ±10%; ±20% ; (4)Rated Voltage (VR) ≤ +85℃: 2.5 4 6.3 10 16 20 25 35 50; (5)Category Voltage (VC) ≤ +125℃: 1.7 2.7 4 7 10 13 17 23 33; (6)Surge Voltage (VS) ≤ +85℃: 3.3 5.2 8 13 20 26 32 46 65; (7)Surge Voltage (VS) ≤ +125℃: 2.2 3.4 5 8 13 16 20 28 40; (8)Temperature Range: -55 to +125℃; (9)Environmental Classification: 55/125/56 (IEC 68-2); (10)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level; (11)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request.

Features

TPSV686K025R0095 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

Diagrams

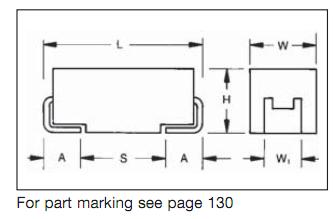

TPSV686K025R0095 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPSV686K025R0095
TPSV686K025R0095

AVX

Tantalum Capacitors - Solid SMD 68uF 25V 10% L ESR

Data Sheet

0-1: $5.61
1-50: $4.92
50-100: $4.52
100-400: $2.62
