Product Summary

The SBB-4089Z is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 5V supply, the SBB-4089Z does not require a dropping resistor as compared to typical Darlington amplifiers. The SBB-4089Z product is designed for high linearity 5V gain block applications that require small size and minimal external components. It is internally matched to 50Ω.

Parametrics

SBB-4089Z absolute maximum ratings: (1)Device Current (ID): 100mA; (2)Max Device Voltage (VD): 5.5 V; (3)Max RF Input Power: 24 dBm; (4)Max Operating Dissipated Power: 0.55 W; (5)Junction Temp (TJ): +150℃; (6)Operating Temp Range (TL): -40 to +85℃; (7)Storage Temp: +150 ℃.

Features

SBB-4089Z features: (1)OIP3=35.2dBm at 1950MHz; (2)P1dB=19.3dBm at 1950MHz; (3)Single Fixed 5V Supply; (4)Robust 1000V ESD, Class 1C; (5)Patented Thermal Design & Bias Circuit; (6)Low Thermal Resistance.

Diagrams

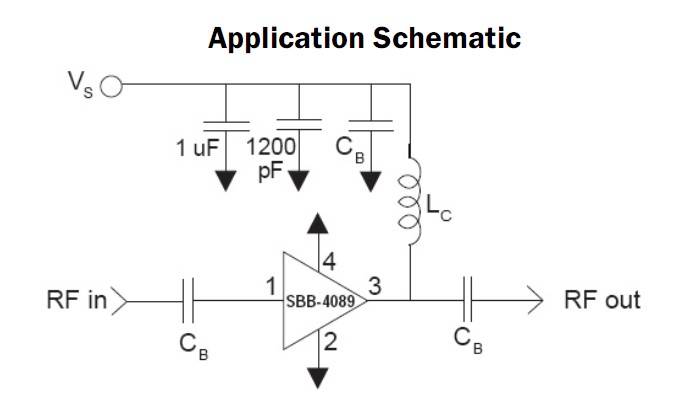

SBB-4089Z application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SBB-4089Z
SBB-4089Z

IC AMP HBT INGAP/GAAS SOT-89
Data Sheet
0-1: $2.77
1-10: $2.48
10-25: $2.23
25-100: $2.03
100-250: $1.83
250-500: $1.64
