Product Summary

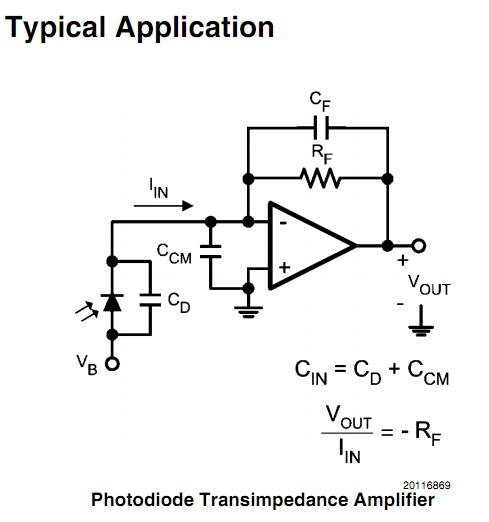

The LMV791MK+ is a Single, low noise, CMOS input operational amplifier. It can offer a low input voltage noise density of 5.8 nV/ while consuming only 1.15 mA of quiescent current. The LMV791MK+ is unity gain stable op amps and has gain bandwidth of 17 MHz. The LMV791MK+ has a supply voltage range of 1.8V to 5.5V and can operate from a single supply. The applicaitons of the LMV791MK+ include Photodiode amplifiers, Active filters and buffers, Low noise signal processing, Medical Instrumentation and Sensor interface applications.
Parametrics
LMV791MK+ absolute maximum ratings: (1)ESD Tolerance, Human Body Model: 2000V; Machine Model: 200V; Charge-Device Model: 1000V; (2)VIN Differential: ±0.3V; (3)Supply Voltage (V+ – V-): 6.0V; (4)Input/Output Pin Voltage: V+ +0.3V, V- -0.3V; (5)Storage Temperature Range: -65 to 150℃; (6)Junction Temperature: +150℃; (7)Soldering Information, Infrared or Convection (20 sec): 235℃; Wave Soldering Lead Temp (10 sec): 260℃.
Features
LMV791MK+ features: (1)Input referred voltage noise 5.8 nV/Hz; (2)Input bias current 100 fA; (3)Unity gain bandwidth 17 MHz; (4)Supply current per channel enable mode: 1.15 mA; (5)Supply current per channel in shutdown mode 0.02 μA; (6)Rail-to-rail output swing @ 10 kΩ load 25 mV from rail; @ 2 kΩ load 45 mV from rail; (7)Guaranteed 2.5V and 5.0V performance; (8)Total harmonic distortion 0.01% @1 kHz, 600Ω; (9)Temperature range -40 to 125℃.
