Product Summary
The LMV761MF+ is a precision comparator intended for applications requiring low noise and low input offset voltage. The LMV761MF+ single has a shutdown pin that can be used to disable the device and reduce the supply current. The device is available in a space saving SOT23-6 or SOIC-8 package. The applications of the LMV761MF+ include Portable and battery-powered systems, Scanners, Set top boxes, High speed differential line receiver, Window comparators, Zero-crossing detectors, High speed sampling circuits.
Parametrics
LMV761MF+ absolute maximum ratings: (1)ESD Tolerance, Human Body Model: 2000V; Machine Model: 200V; (2)Supply Voltage (V-–V-): 5.5V; (3)Differential Input Voltage: Supply Voltage; (4)Voltage between any two pins: Supply Voltage; (5)Infrared or Convection (20 sec.): 235℃; (6)Wave Soldering (10 sec.): 260℃ (Lead Temp); (7)Junction Temperature: 150℃; (8)Storage Temperature Range: -65 to 150℃.
Features
LMV761MF+ features: (1)Input offset voltage 0.2mV; (2)Input offset voltage (max over temp) 1mV; (3)Input bias current 0.2pA; (4)Propagation delay (OD = 50mV) 120 nsec; (5)Low supply current 300μA; (6)CMRR 100dB; (7)PSRR 110dB; (8)Extended Temperature Range -40 to 125℃; (9)Push-pull output; (10)Ideal for 2.7V and 5V single supply applications; (11)Available in space-saving packages: 6-Pin SOT23 (single w/shutdown), 8-Pin SOIC (single w/shutdown), 8-Pin SOIC/MSOP (dual without shutdown).

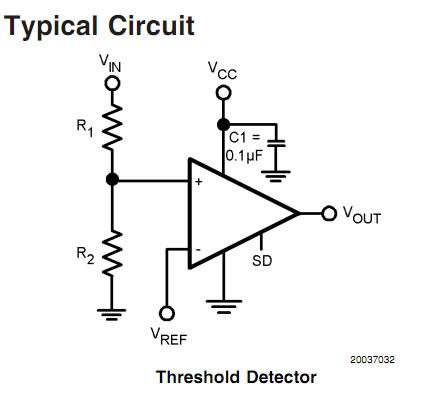

Diagrams
