LM5022MME+

1A, 10MSOP, 60V, Low Side Controller, -0.3V to 65V, Slope Compensation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.70

PartNumber:: LM5022MME+

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Charlie Cha's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-30

From Other Seller

Part Number:LM5022MME+
US $1.30 - 1.70
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

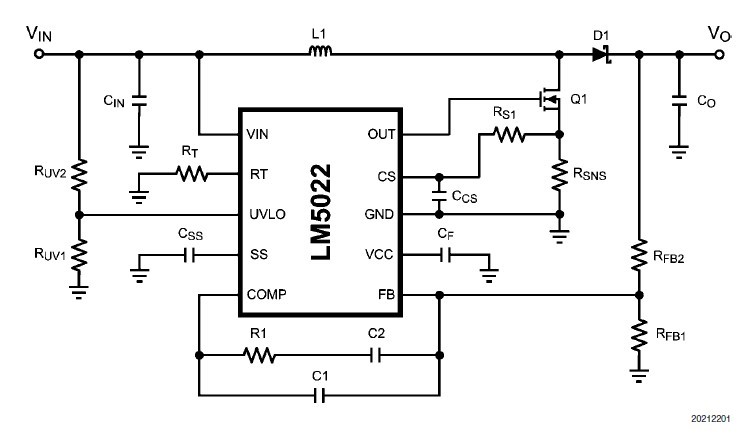

The LM5022MME+ is a high voltage low-side N-channel MOSFET controller ideal for use in boost and SEPIC regulators. It contains all of the features needed to implement single ended primary topologies. Output voltage regulation is based on current-mode control, which eases the design of loop compensation while providing inherent input voltage feed-forward. The LM5022MME+ includes a start-up regulator that operates over a wide input range of 6V to 60V. The PWM controller is designed for high speed capability including an oscillator frequency range up to 2 MHz and total propagation delays less than 100 ns. Additional features include an error amplifier, precision reference, line under-voltage lockout, cycle-by-cycle current limit, slope compensation, soft-start, external synchronization capability and thermal shutdown. The LM5022MME+ is available in the MSOP-10 package. The applications of the LM5022MME+ are: Boost Converter, SEPIC Converter.

Parametrics

LM5022MME+ absolute maximum ratings: (1)VIN to GND: -0.3V to 65V; (2)VCC to GND: -0.3V to 16V; (3)RT/SYNC to GND: -0.3V to 5.5V; (4)OUT to GND: -1.5V for < 100 ns; (5)All other pins to GND: -0.3V to 7V; (6)Power Dissipation: Internally Limited; (7)Junction Temperature: 150℃; (8)Storage Temperature: -65℃ to +150℃.

Features

LM5022MME+ features: (1)Internal 60V Startup Regulator; (2)1A Peak MOSFET Gate Driver; (3)VIN Range 6V to 60V; (4)Duty Cycle Limit of 90%; (5)Programmable UVLO with Hysteresis; (6)Cycle-by-Cycle Current Limit; (7)External Synchronizable (AC-coupled); (8)Single Resistor Oscillator Frequency Set; (9)Slope Compensation; (10)Adjustable Soft-start; (11)MSOP-10 Package.
