LM2734XMK+

1A, TSOT23-6, LM2734XMK+, DC-DC Regulator, Internal soft-start

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.50

PartNumber:: LM2734XMK+

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Charlie Cha's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-30

From Other Seller

Part Number:LM2734XMK+
US $1.10 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM2734XMK+ is a 1A Load Step-Down DC-DC Regulator. It is a monolithic, high frequency, PWM step-down DC/DC converter in a 6-pin Thin SOT23 package. The LM2734XMK+ provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area. With a minimum of external components and online design support through WEBENCH, the LM2734XMK+ is easy to use. The ability to drive 1A loads with an internal 300mΩ NMOS switch using state-of-the-art 0.5μm BiCMOS technology results in the best power density available. The applications of the LM2734XMK+ are Local Point of Load Regulation, Core Power in HDDs, Set-Top Boxes, Battery Powered Devices, USB Powered Devices, DSL Modems, Notebook Computers.

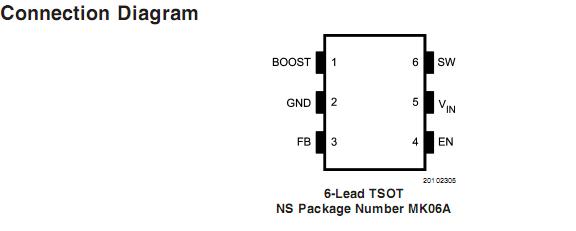

Parametrics

LM2734XMK+ absolute maximum ratings: (1)VIN:-0.5V to 24V; (2)SW Voltage:-0.5V to 24V; (3)Boost Voltage:-0.5V to 30V; (4)Boost to SW Voltage:-0.5V to 6.0V; (5)FB Voltage:-0.5V to 3.0V; (6)EN Voltage:-0.5V to (VIN + 0.3V); (7)Junction Temperature:150℃; (8)ESD Susceptibility:2kV; (9)Storage Temp. Range:-65℃ to 150℃; (10)Soldering Information: Infrared/Convection Reflow (15sec):220℃, Wave Soldering Lead Temp. (10sec):260℃.

Features

LM2734XMK+ features: (1)Thin SOT23-6 package; (2)3.0V to 20V input voltage range; (3)0.8V to 18V output voltage range; (4)1A output current; (5)550kHz switching frequencies; (6)300mΩ NMOS switch; (7)30nA shutdown current; (8)0.8V, 2% internal voltage reference; (9)Internal soft-start; (10)Current-Mode, PWM operation; (11)WEBENCH online design tool.
