Product Summary

The MRF8S9120NR3 is an N-Channel Enhancement-Mode Lateral MOSFET designed for CDMA base station applications with frequencies from 700 to 1000 MHz. The MRF8S9120NR3 can be used in class AB and Class C for all typical cellular base station modulation formats.

Parametrics

MRF8S9120NR3 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5 to +70 Vdc; (2)Gate-Source Voltage VGS: -6.0 to +10 Vdc; (3)Operating Voltage VDD: 32, +0 Vdc; (4)Storage Temperature Range Tstg: -65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature (1,2) TJ: 225 ℃.

Features

MRF8S9120NR3 features: (1)100% PAR Tested for Guaranteed Output Power Capability; (2)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source S--Parameters; (3)Internally Matched for Ease of Use; (4)Integrated ESD Protection; (5)Greater Negative Gate-Source Voltage Range for Improved Class C Operation; (6)Designed for Digital Predistortion Error Correction Systems; (7)Optimized for Doherty Applications; (8)225℃ Capable Plastic Package; (9)RoHS Compliant; (10)In Tape and Reel. R3 Suffix = 250 Units per 32 mm, 13 inch Reel.

Diagrams

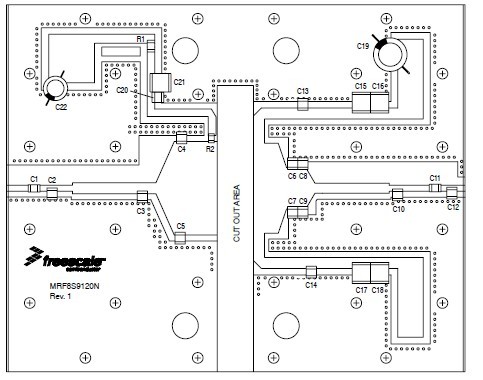

MRF8S9120NR3 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF8S9120NR3
MRF8S9120NR3
Freescale Semiconductor
Transistors RF MOSFET Power HV8 900MHZ 120W OM780-2
Data Sheet
0-187: $25.84
187-250: $24.95
