Product Summary
The MRF8P20140WHSR3 is an N-Channel Enhancement--Mode Lateral MOSFET which is designed for CDMA base station applications with frequencies from 1880 to 2025 MHz. The MRF8P20140WHSR3 can be used in Class AB and Class C for all typical cellular base station modulation formats.
Parametrics
MRF8P20140WHSR3 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5 to +65 Vdc; (2)Gate-Source Voltage VGS: -6.0 to +10 Vdc; (3)Operating Voltage VDD: 32 to +0 Vdc; (4)Storage Temperature Range Tstg: - 65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature (1,2) TJ: 225 ℃.
Features
MRF8P20140WHSR3 features: (1)Designed for Wideband Applications that Require 160 MHz Signal Bandwidth; (2)100% PAR Tested for Guaranteed Output Power Capability; (3)Characterized with Large-Signal Load-Pull Parameters and Common Source S-Parameters; (4)Internally Matched for Ease of Use; (5)Integrated ESD Protection; (6)Greater Negative Gate-Source Voltage Range for Improved Class C Operation; (7)Designed for Digital Predistortion Error Correction Systems; (8)RoHS Compliant.

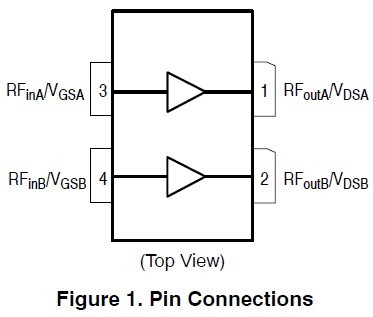

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF8P20140WHSR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV8 2GHZ 24W NI780S-4 |
Data Sheet |
|
|
||||||||||||
