Product Summary

The MPC8377VRALG is a processor. The MPC8377VRALG incorporates the e300c4s core, which includes 32 Kbytes of L1 instruction and data caches and on-chip memory management units (MMUs). The MPC8377VRALG offers two enhanced three-speed 10, 100, 1000 Mbps Ethernet interfaces, a DDR1/DDR2 SDRAM memory controller, a flexible, a 32-bit local bus controller, a 32-bit PCI controller, an optional dedicated security engine, a USB 2.0 dual-role controller, a programmable interrupt controller, dual I2C controllers, a 4-channel DMA controller, an enhanced secured digital host controller, and a general-purpose I/O port.

Parametrics

MPC8377VRALG absolute maximum ratings: (1)Core supply voltage VDD: –0.3 to 1.1 V; (2)PLL supply voltage (e300 core, system and eLBC) AVDD: –0.3 to 1.1 V; (3)DDR1 and DDR2 DRAM I/O voltage GVDD: –0.3 to 2.75V; (4)Three-speed Ethernet I/O, MII management voltage LVDD: –0.3 to 3.63 V; (5)PCI, DUART, system control and power management, I2C, and JTAG I/O voltage OVDD: –0.3 to 3.63 V; (6)Local bus LBVDD: –0.3 to 3.63 V.

Features

MPC8377VRALG features: (1)e300c4s core built on Power Architecturetechnology with 32-Kbyte instruction cache and 32-Kbyte data cache, a floating point unit, and two integer units; (2)DDR1/DDR2 memory controller supporting a 32/64-bit interface; (3)Peripheral interfaces, such as a 32-bit PCI interface with up to 66-MHz operation; (4)32-bit local bus interface running up to 133-MHz; (5)USB 2.0 (full/high speed) support; (6)Power management controller for low-power consumption; (7)High degree of software compatibility with previous-generation PowerQUICC processor-based designs for backward compatibility and easier software migration; (8)Optional security engine provides acceleration for control and data plane security protocols.

Diagrams

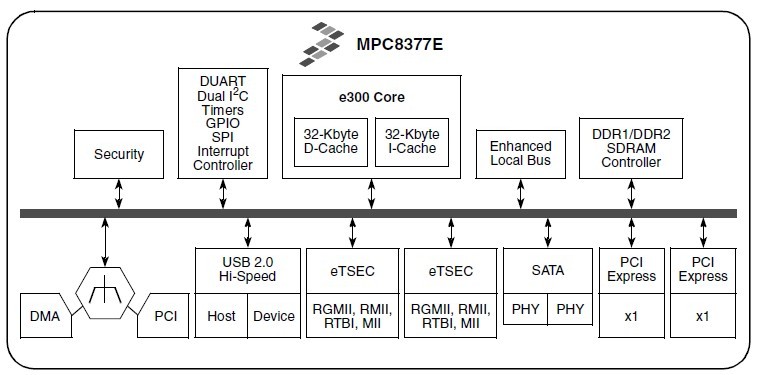

MPC8377VRALG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPC8377VRALG
MPC8377VRALG
Freescale Semiconductor
Microprocessors (MPU) PBGA W/O ENCR
Data Sheet
0-16: $40.61
16-25: $37.55
25-100: $35.19
MPC8377VRALGA
MPC8377VRALGA
Freescale Semiconductor
Microprocessors (MPU) 8377 PBGA ST PbFr No ENC
Data Sheet
0-12: $42.99
12-25: $40.56
25-100: $25.35
