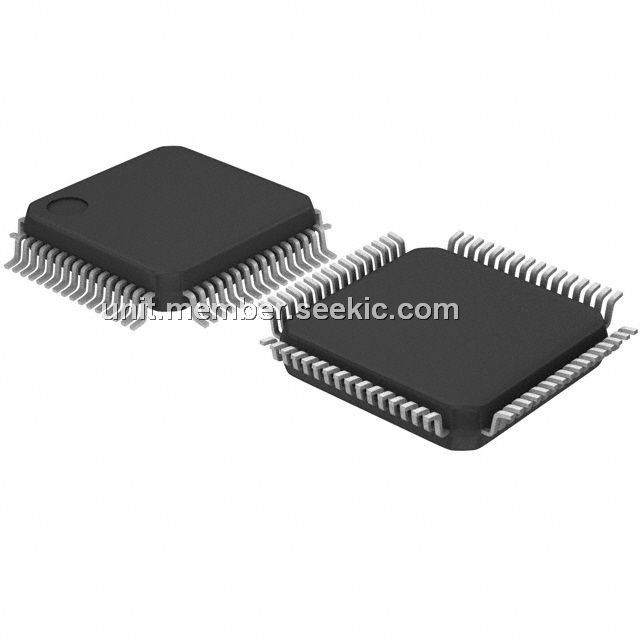

Product Summary

The LPC2138FBD64/01,15 is a single-chip 16/32-bit microcontroller. The LPC2138FBD64/01,15 microcontroller is based on a 32/16 bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combines the microcontroller with 32 kB of embedded high speed Flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. The applicaitons of the LPC2138FBD64/01,15 include Automotive entertainment, Connectivity, Display, Communications gateways and protocol converters, Software modems, Voice recognition and Low-end imaging.

Parametrics

LPC2138FBD64/01,15 absolute maximum rating: (1)VDD supply voltage, core and external rail -0.5 +3.6 V; (2)VDDA analog 3.3 V pad supply voltage -0.5 4.6 V; (3)VBAT RTC power supply voltage -0.5 4.6 V; (4)VREF A/D converter reference voltage -0.5 4.6 V; (5)VIA analog input voltage on A/D related pins -0.5 5.1 V; (6)IDD DC supply current per supply pin - 100 mA; (7)ISS DC ground current per ground pin - 100 mA; (8)Tstg storage temperature -40 125 ℃.

Features

LPC2138FBD64/01,15 features: (1)16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)8/16/32 kB of on-chip static RAM and 32/64/128/256/512 kB of on-chip Flash program memory. 128 bit wide interface/accelerator enables high speed 60 MHz operation; (3)In-System/In-Application Programming (ISP/IAP) via on-chip boot-loader software. Single Flash sector or full chip erase in 400 ms and programming of 256 bytes in 1 ms; (4)EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high speed tracing of instruction execution; (5)One (LPC2131/32) or two (LPC2134/36/38) 8 channel 10-bit A/D converters provides a total of up to 16 analog inputs, with conversion times as low as 2.44 μs per channel; (6)Single 10-bit D/A converter provides variable analog output (LPC2132/34/36/38); (7)Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog; (8)Low power Real-time clock with independent power and dedicated 32 kHz clock input; (9)Multiple serial interfaces including two UARTs (16C550), two Fast I2C-bus (400 kbit/s), SPI and SSP with buffering and variable data length capabilities.; (10)Vectored interrupt controller with con?gurable priorities and vector addresses.

Diagrams

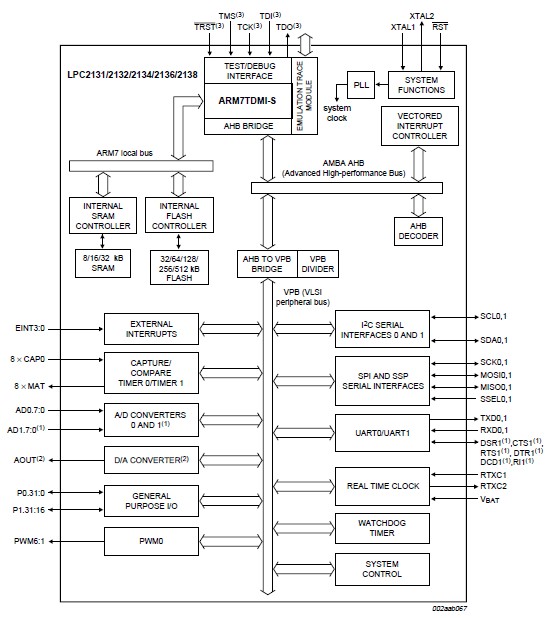

LPC2138FBD64/01,15 block diagram
