Product Summary
The LMK01000ISQ+ is a 1.6 GHz High Performance Clock Buffer, Divider, and Distributor. The LMK01000ISQ+ provides an easy way to divide and distribute high performance clock signals throughout the system. The device provides best-in- class noise performance and are designed to be pin-to-pin and footprint compatible with LMK01000ISQ+of precision clock conditioners. The target applications of the LMK01000ISQ+ include High performance Clock Distribution, Wireless Infrastructure, Medical Imaging, Wired Communications, Test and Measurement and Military / Aerospace.
Parametrics
LMK01000ISQ+ absolute maximum ratings: (1)Power Supply Voltage, VCC: -0.3 to 3.6 V; (2)Input Voltage, VIN: -0.3 to (VCC + 0.3) V; (3)Storage Temperature Range, TSTG: -65 to 150℃; (4)Lead Temperature (solder 4 s), TL: +260℃; (5)Junction Temperature, TJ: 125℃.
Features
LMK01000ISQ+ features: (1)30 fs additive jitter (100 Hz to 20 MHz); (2)Dual clock inputs; (3)Programmable output channels (0 to 1600 MHz): 3 LVDS outputs (CLKout0 - CLKout2) + 5; Channel divider values of 1, 2 to 510 (even divides); Programmable output skew control; (4)External synchronization; (5)Pin compatible family of clocking devices; (6)3.15 to 3.45 V operation; (7)Package: 48 pin LLP (7.0 × 7.0 × 0.8 mm).

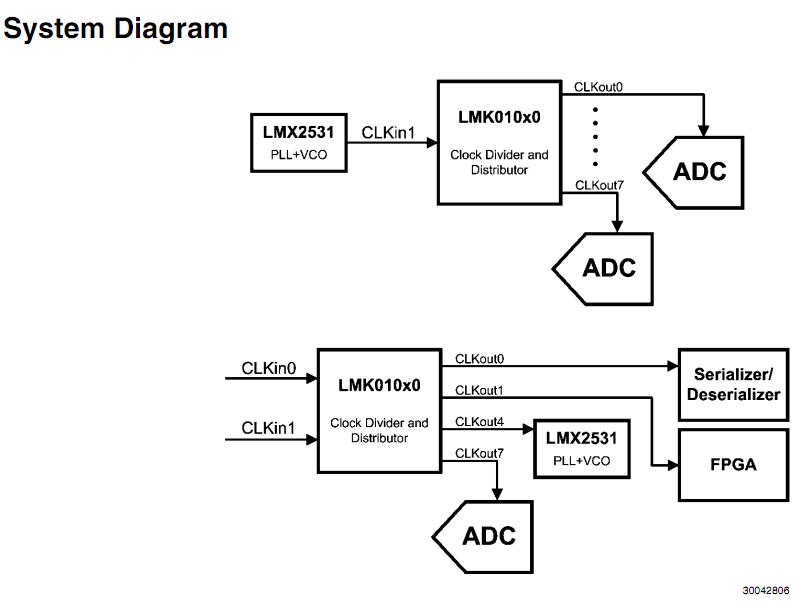

Diagrams
 |
