Product Summary
The TPSE477M010R0045 is a Low ESR Capacitor.
Parametrics
TPSE477M010R0045 absolute maximum ratings: (1)Capacitance Range: 0.15 μF to 1500 μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5 4 6.3 10 16 20 25 35 50; (4)Category Voltage (VC) ≤ +125℃: 1.7 2.7 4 7 10 13 17 23 33; (5)Surge Voltage (VS) ≤ +85℃: 3.3 5.2 8 13 20 26 32 46 65; (6)Surge Voltage (VS) ≤ +125℃: 2.2 3.4 5 8 13 16 20 28 40; (7)Temperature Range: -55℃ to +125℃; (8)Environmental Classification: 55/125/56 (IEC 68-2); (9)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level.
Features
TPSE477M010R0045 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

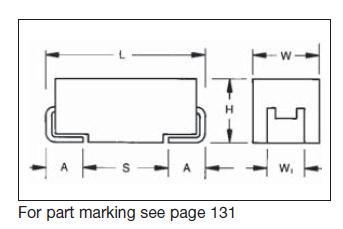

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPSE477M010R0045 |
AVX |
Tantalum Capacitors - Solid SMD 470uF 10V 20%SER III |
Data Sheet |
|
|
||||||||||||||
