Product Summary
The LMV774MTX+ is a Single, Dual, and Quad low noise precision operational amplifier, which is intended for use in a wide range of applications. The applications of the LMV774MTX+ include Transducer amplifier, Instrumentation amplifier, Precision current sensing, Data acquisition systems, Active filters and buffers, Sample and hold, Portable/battery powered electronics.
Parametrics
LMV774MTX+ absolute maximum ratings: (1)ESD Tolerance: Machine Model: 200V, Human Body Model: 2000V; (2)Differential Input Voltage: ± Supply Voltage; (3)Supply Voltage (V+–V -): 5.5V; (4)Mounting Temperture: Infrared or Convection (20 sec): 235℃, Wave Soldering Lead Temp (10 sec): 260℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Junction Temperature: 150℃.
Features
LMV774MTX+ features: (1)Guaranteed 2.7V and 5V specifications; (2)Maximum VOS (LMV771) 850μV (limit); (3)Rail-to-Rail output swing: w/600Ω load 100mV from rail, w/2kΩ load 50mV from rail; (4)Open loop gain w/2kΩ load: 100dB; (5)VCM: 0 to V+ -0.9V; (6)Supply current (per amplifier): 550μA; (7)Gain bandwidth product: 3.5MHz; (8)Temperature range: -40℃ to 125℃.

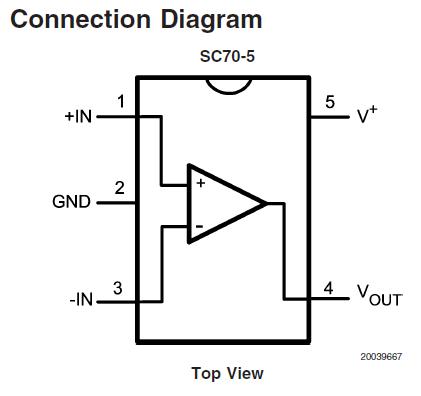

Diagrams
 |
