Product Summary
The LM117H+ adjustable 3-terminal positive voltage regulator is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. The LM117H+ is packaged in standard transistor packages which are easily mounted and handled. The LM117H+ is useful in a wide variety of other applications. The LM117H+ can be used as a precision current regulator. Supplies with electronic shutdown can be achieved by clamping the adjustment terminal to ground which programs the output to 1.2V where most loads draw little current.
Parametrics
LM117H+ absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: +40V to -0.3V; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature, Metal Package (Soldering, 10 seconds): 300℃; (5)Plastic Package (Soldering, 4 seconds): 260℃; (6)ESD Tolerance (Note 5): 3 kV.
Features
LM117H+ features: (1)Guaranteed 1% output voltage tolerance (LM317A); (2)Guaranteed max. 0.01%/V line regulatio(LM317A); (3)Guaranteed max. 0.3% load regulatio(LM117); (4)Guaranteed 1.5A output current; (5)Adjustable output dowto 1.2V; (6)Current limit constant with temperature; (7)P+ Product Enhancement tested; (8)80 dB ripple rejection; (9)Output is short-circuit protected.

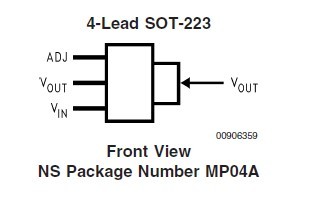

Diagrams
 |
